• Monitor Mount for a 00-Series, 10-Series, 50-Series John Deere Combine Cab

00 to 50-Series Combine GPS Monitor Bracket for Brown Box, 2600 or 2630 Screen

$202.14
$202.14

30-Day Returns | 1-Yr Warranty | 100% Satisfaction

This bracket can be used to mount a device in a 00-Series, 10-Series and 50-Series Series John Deere® Combine. The bracket mounts to the cab frame, so it is super secure.

  • Two holes will need to be drilled
  • No loss of visibility

________________________________________

The item price is for the core metal mounting bracket.
You can add additional components below.

Add an arm kit - 4.5"Aluminum RAM® Arm with Starter Ball (Load Rating: 3 lbs)
Add a Holder with Ball - For John Deere 2600 or 2630 2-Bolt Monitor - 1.5" C Size Ball
Add just a ball(s)

Want next day delivery? Be quick, our cutoff time is 9AM MST (We are in Montana).

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

This 9500 Monitor Mount bracket fits tight in the upper right-hand corner of the cab of a John Deere 00-Series, 10-Series and 50-Series Series Combine.  Can also work on a 7760 John Deere Cotton Picker. The kit is highly adjustable using a 1.5" RAM Mounting System.  Installs using the one existing large bolt and drilling/tapping two smaller holes in the combine cab.  The base bracket is laser-cut metal and powder coat.  The RAM Mounting components are aluminum, so it is a super solid mount.

***You will need to drill and tap two 6M holes to install.***

This can be custom configured to mount a John Deere 2600 or 2630 monitor or a GEN 4 Monitor or even a tablet.

Download the combine cab installation instructions:  Click Here They will say 70-Series at the top, but it is the same for this model as well.

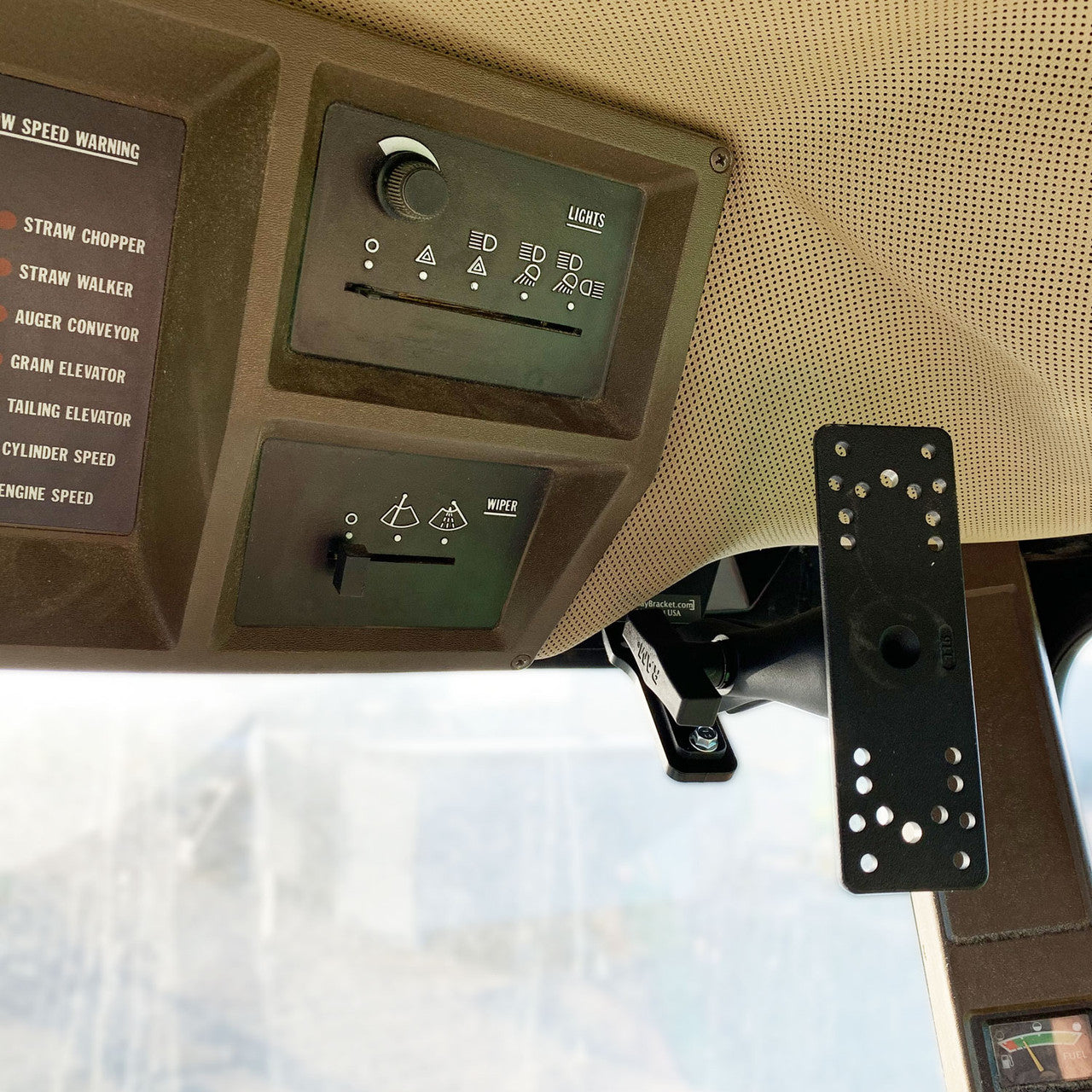

Pictured below is setup to mount a John Deere 2600 or 2630 two bolt monitor.

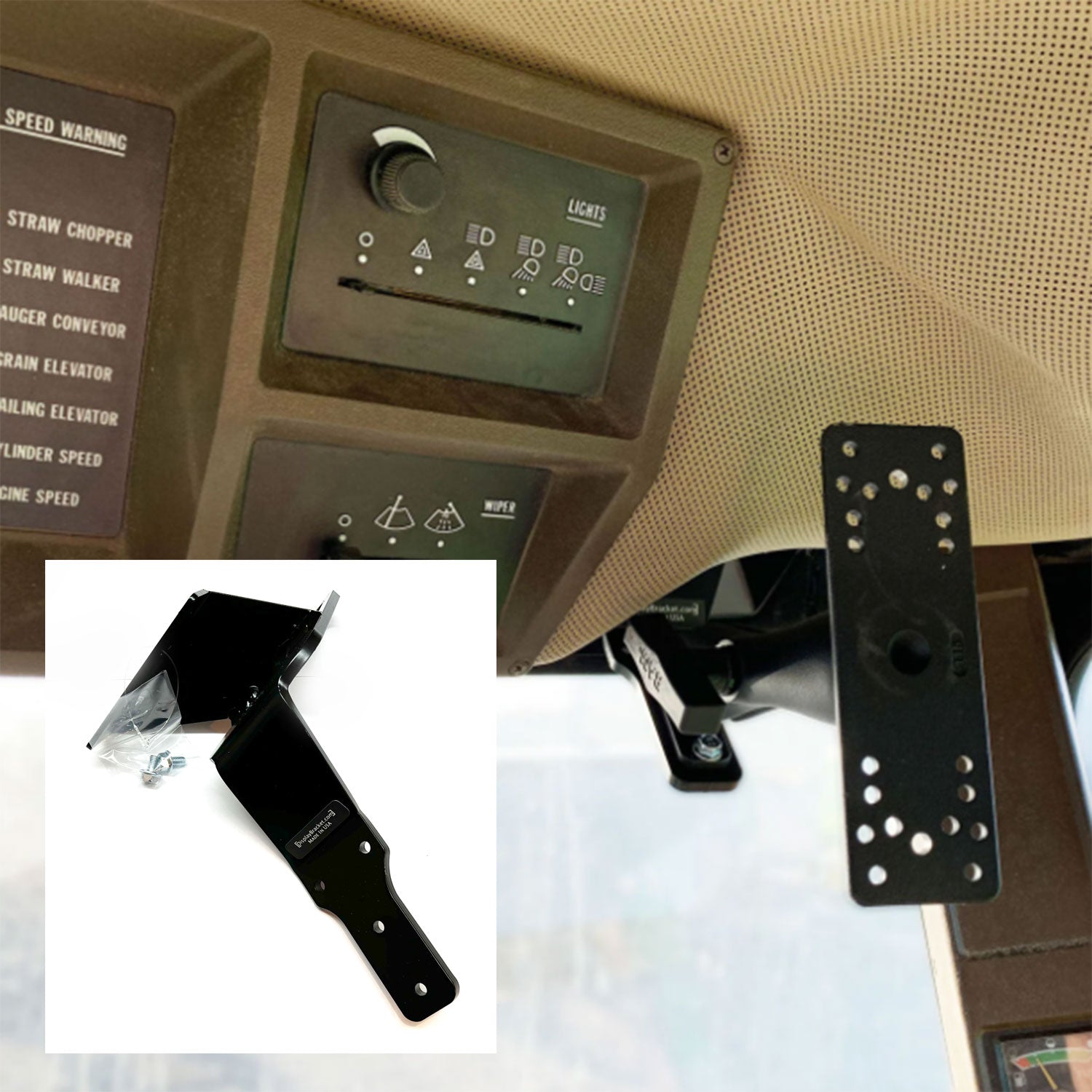

The image below shows the large bolt and nut that are existing in the cab of the combine.  Two holes will need to be drilled and tapped for the other two bolts.



This monitor mounting bracket works on a John Deere 9500, 9600, 9510, 9610, 9450, 9550, 9650, 9750 Combine cabs OR 7760 And Cotton Pickers with this cab design.

Download the installation instructions:  Click Here They will say 70-Series at the top, but it is the same for this model.
